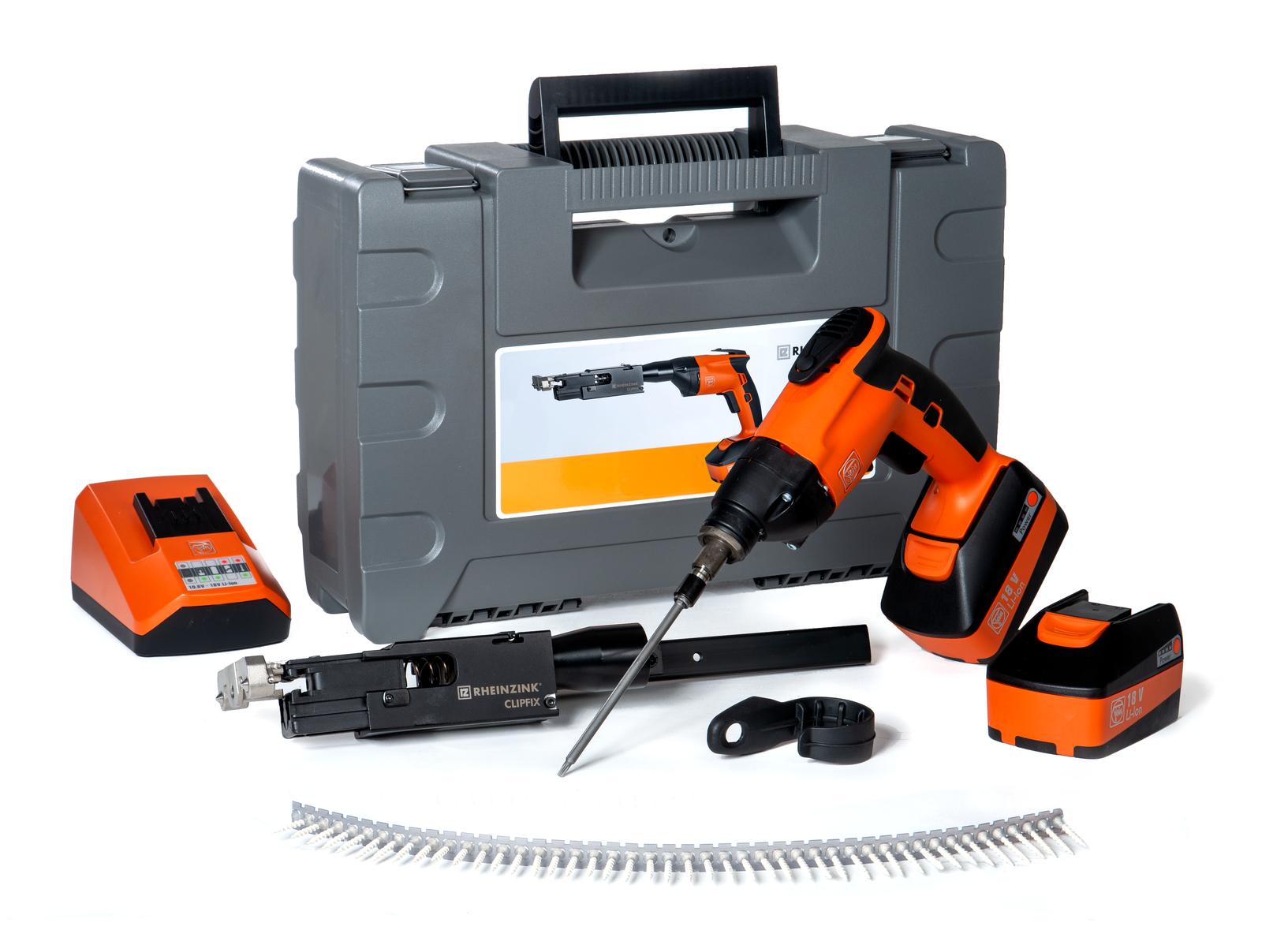

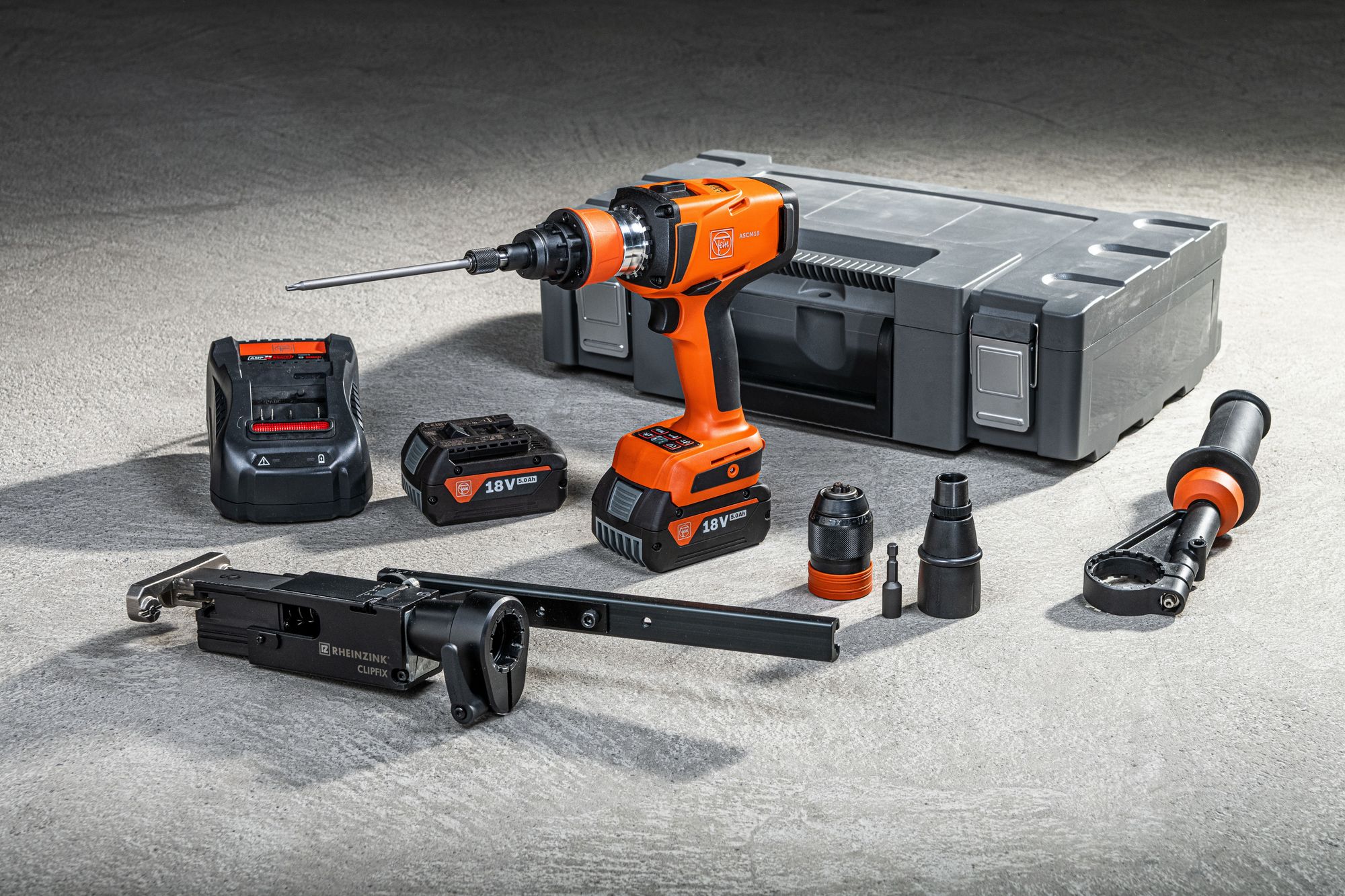

CLIPFIX 3in1 screwdriver

Screwdriver, fixing clips and screws - for secure standing seam fastening

The new CLIPFIX 3in1 combines the proven efficiency of the RHEINZINK magazine screwdriver with the versatility of a powerful FEIN drill driver. Thanks to the latest AMPShare rechargeable battery technology, it is compatible with numerous professional tools from leading brands.

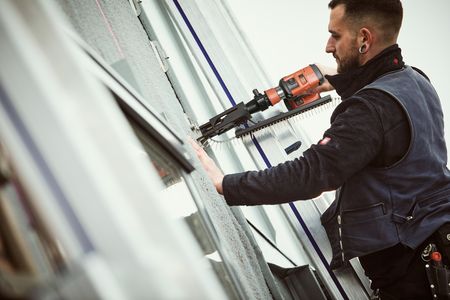

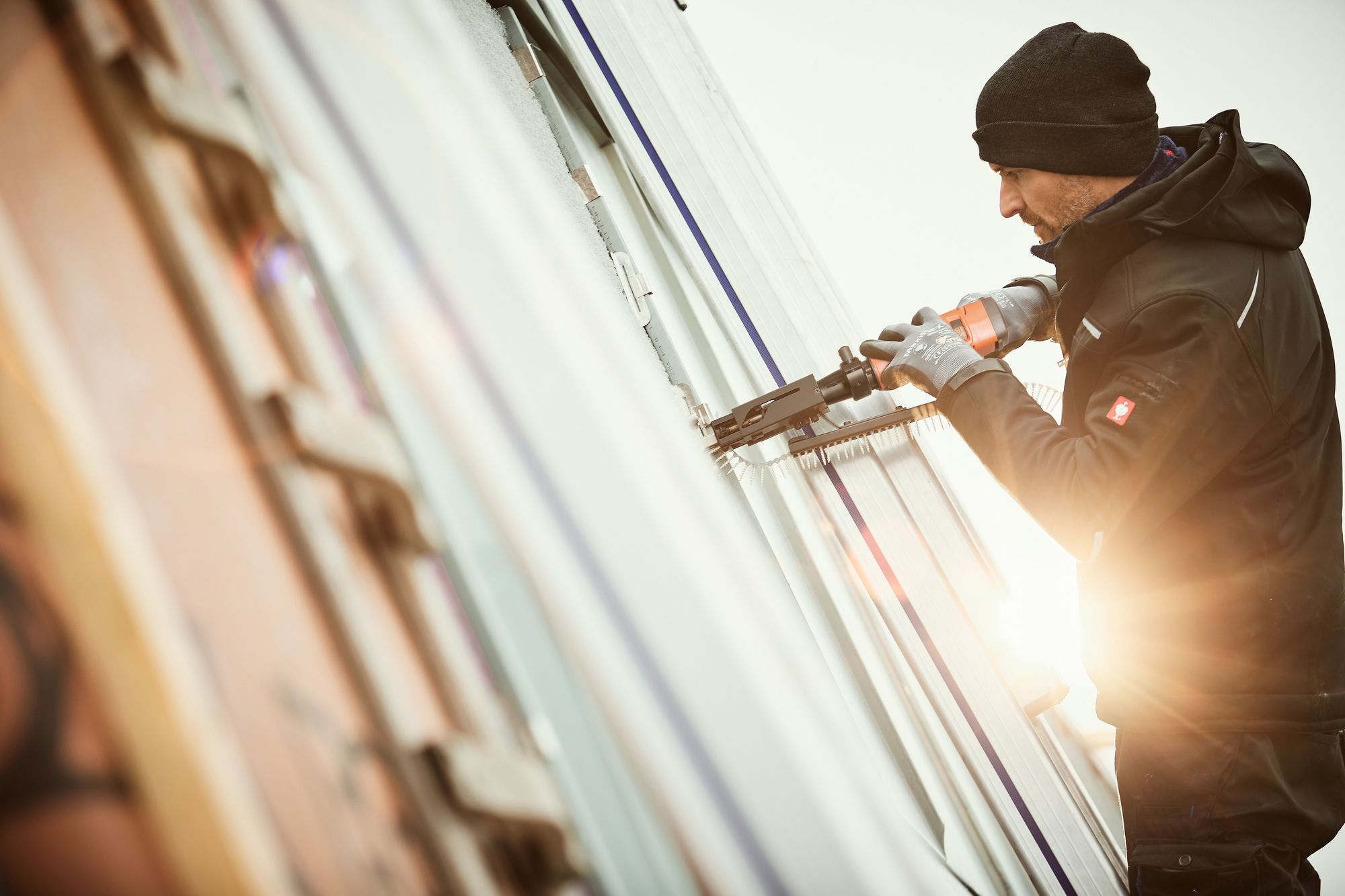

With this innovative screwdriver, you can not only work quickly and efficiently with our RHEINZINK fixing clips, which are approved by the building authorities, but also use the device as a high-quality drill driver - ideal for versatile use on the construction site.


Why CLIPFIX 3in1?

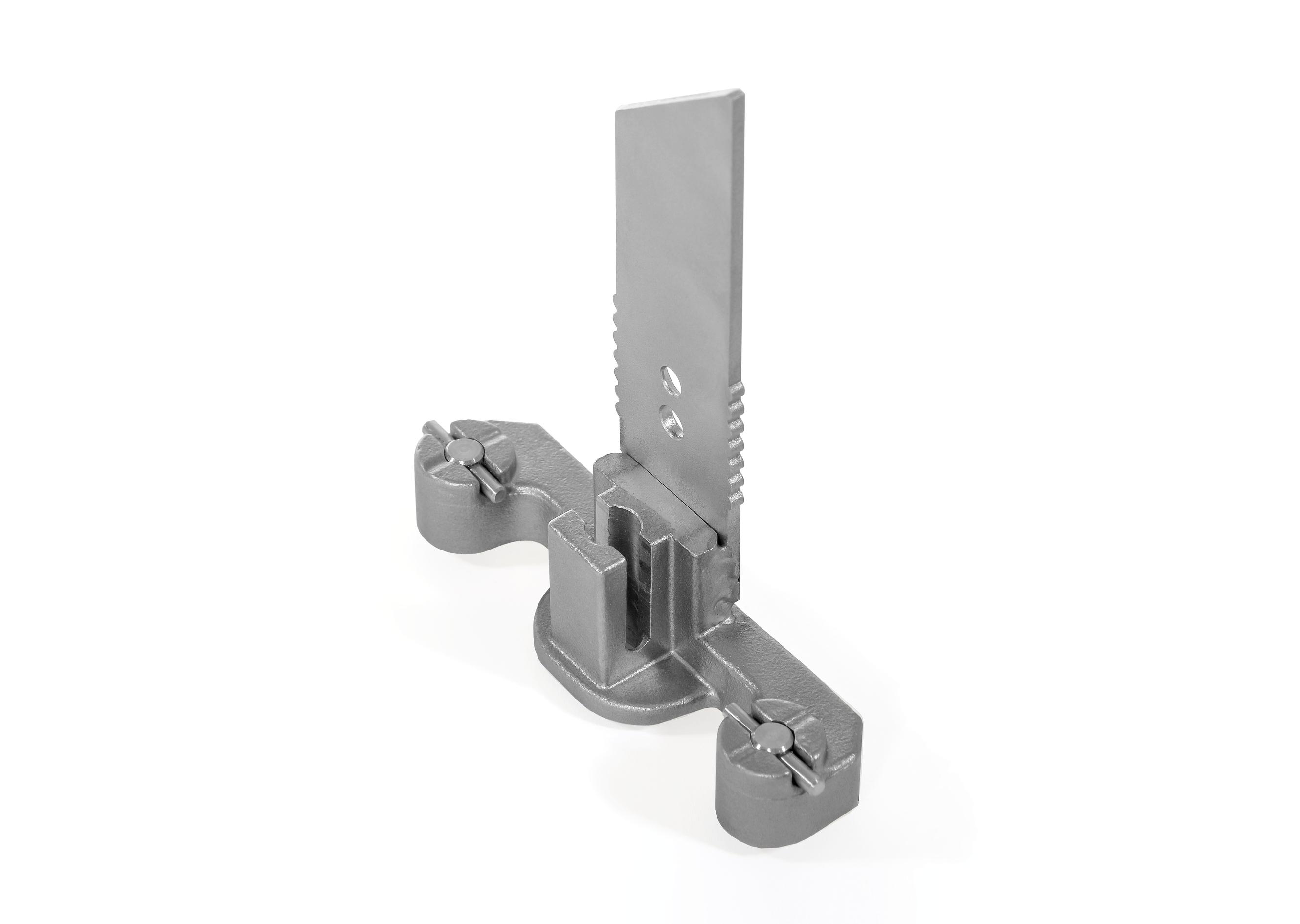

1. perfect for RHEINZINK-fixing clips & standing seam roofs

The CLIPFIX system was specially developed for the secure fastening of RHEINZINK standing seam roofs

  • Tested system - perfect fit for RHEINZINK standing seam systems
  • Static safety thanks to defined fastening
  • Approved by building authorities for RHEINZINK stainless steel clips - wind load tested, durable and 50% higher load-bearing capacity than standard clips (600 Newton)
  • Fastening with corrosion-protected CLIPFIX screws
  • Quick installation - fewer fixing clips, wider clip distance
  • Easy handling, easy to use


2. The CLIPFIX 3in1 is more than just a fixing clip screwdriver

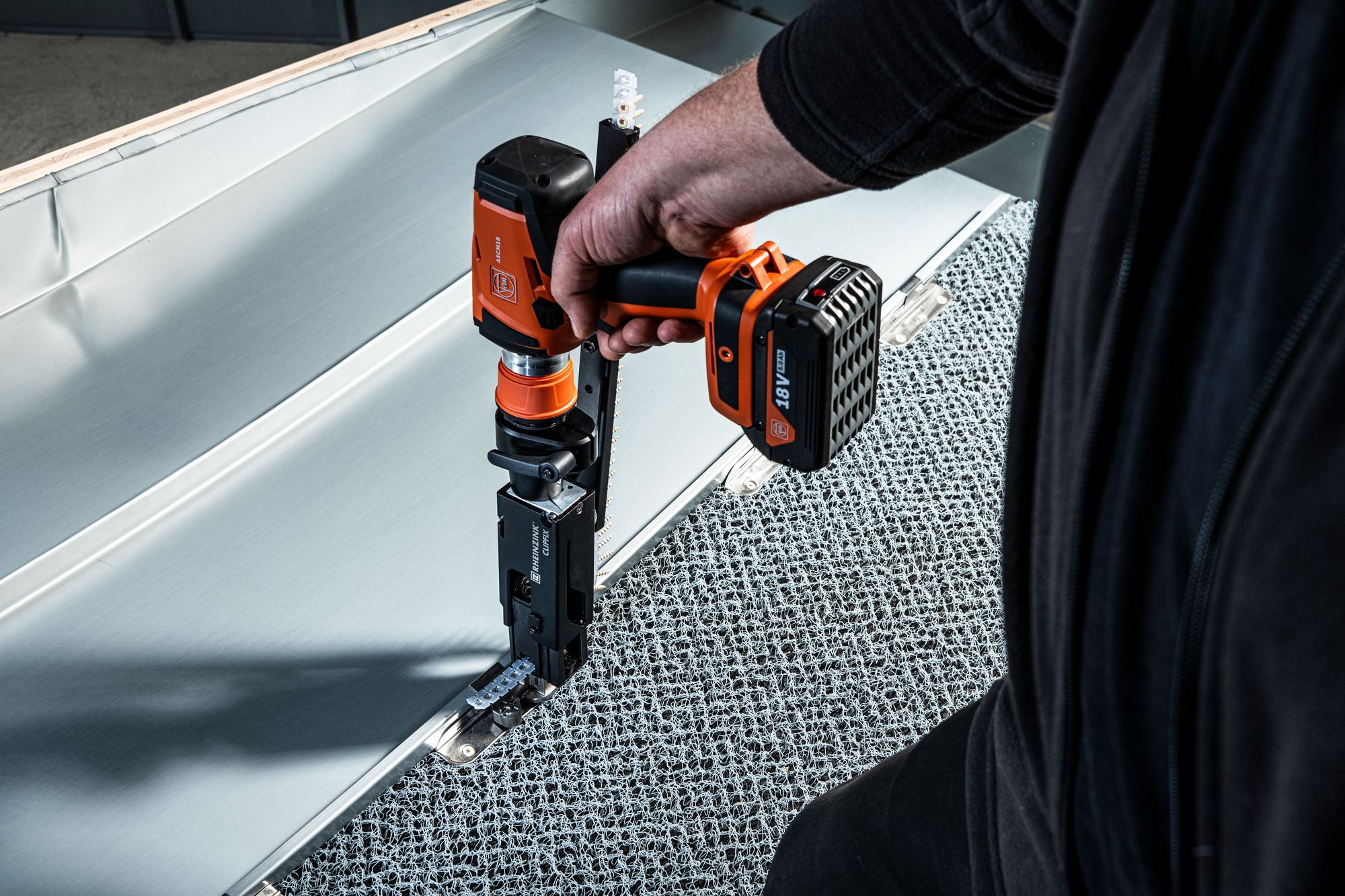

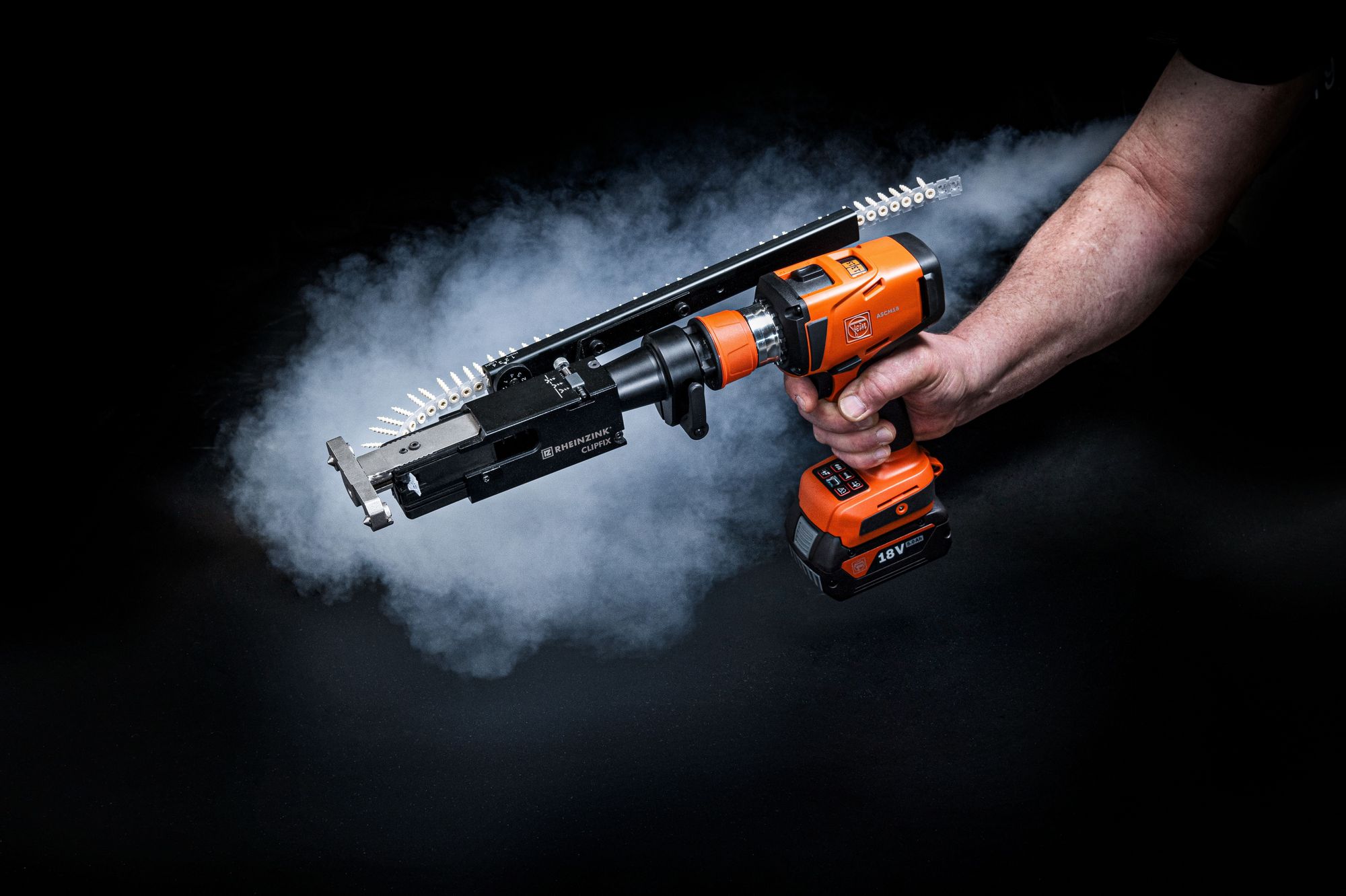

  • Magazine operation: Automatic screw feed for fast and efficient work when fastening RHEINZINK fixing clips.
  • Drilling function: Thanks to the powerful motor and a high-quality QuickIN drill chuck, holes can be drilled with high precision.
  • Screwdriving function: For classic screwdriving applications, including depth stop to set screws to the exact depth required.


3. 40-year guarantee - tested safety

When using the complete system consisting of RHEINZINK-fixing clips, CLIPFIX screws and RHEINZINK standing seam panels.

We grant a 40-year guarantee on the load-bearing capacity of the fixing clips.



CLIPFIX 3in1 - Technical highlights

The CLIPFIX 3in1 is based on the FEIN ASCM 18-4 QM AS cordless drill driver - a powerful, professional tool with a 4-speed full metal gearbox and brushless motor.

  • 4 gears for maximum power (speeds: 430 / 850 / 2000 / 4000 rpm) - for optimum adaptation to every application.
  • Up to 130 Nm torque - high power for effortless screwdriving and drilling.
  • Electronic torque adjustment - for precise and gentle screwdriving work.
  • QuickIN interface - quick, tool-free change of attachments for maximum flexibility.
  • Kickback control - increases work safety by automatically stopping the tool in the event of sudden resistance.

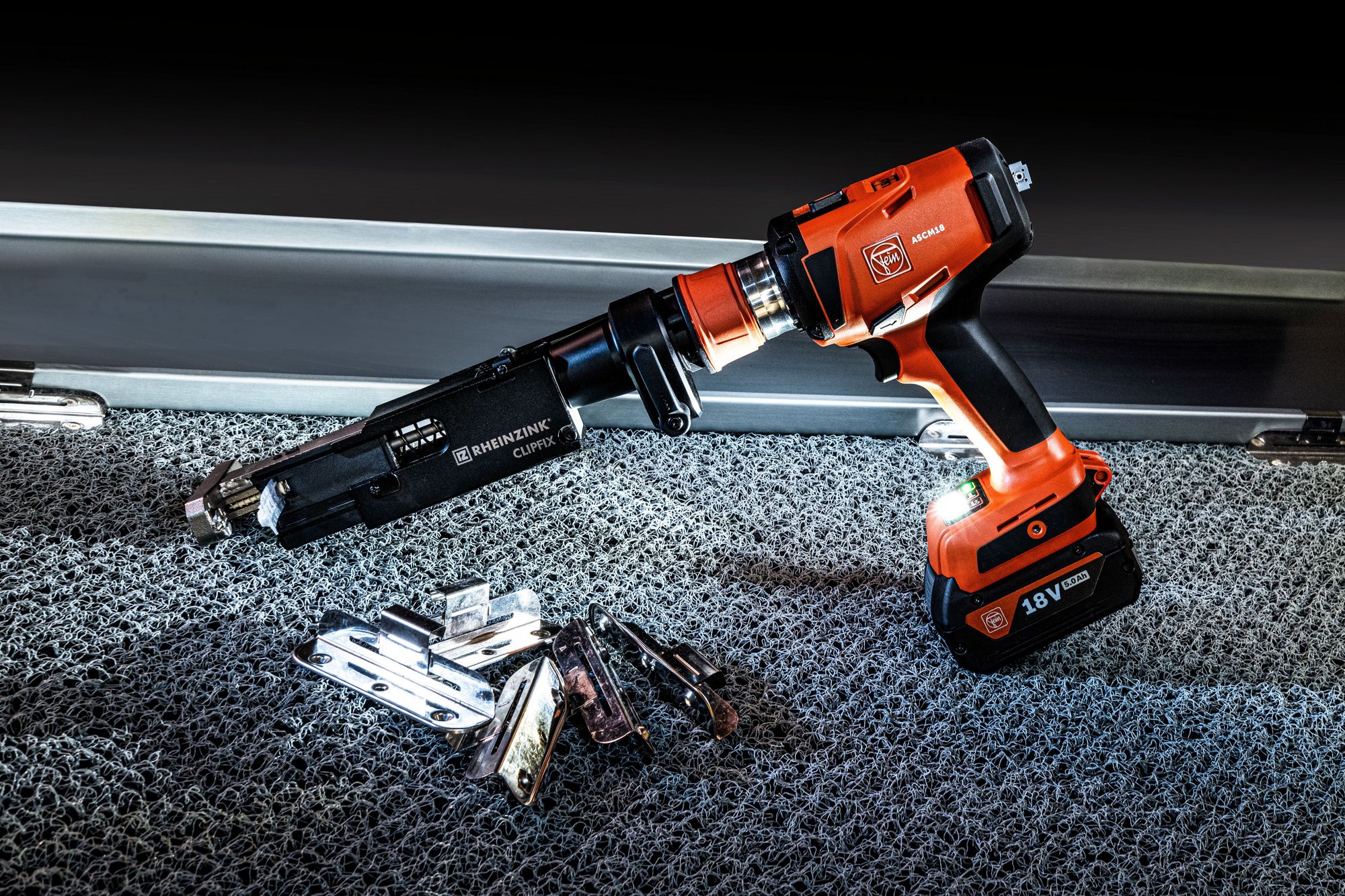

  • Dimmable LED lighting - for optimum visibility, even in poor lighting conditions.
  • Repositioning function - makes it easier to screw into wood at reduced speed.

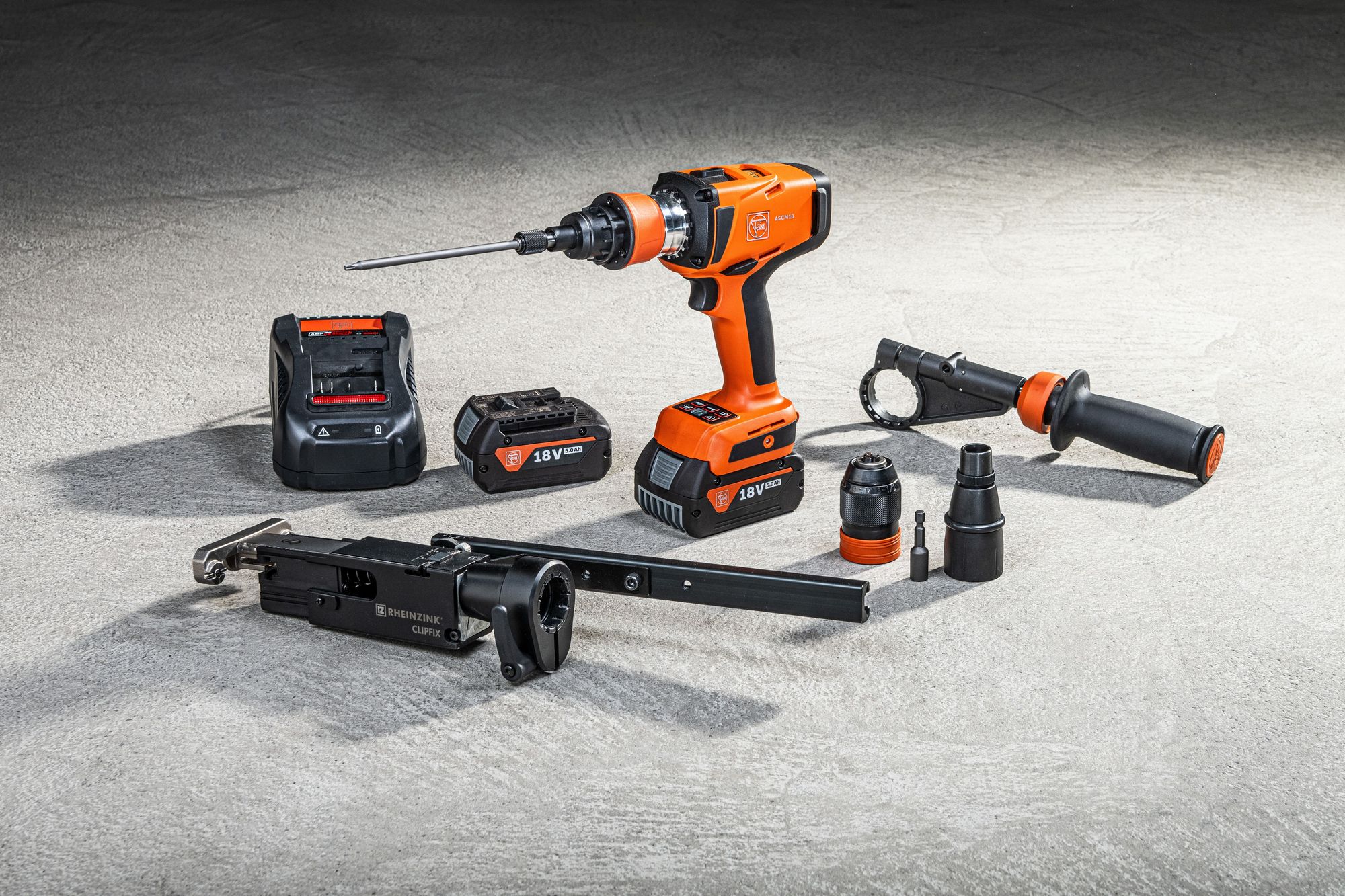

QuickIN accessories for maximum flexibility:

QuickIN drill chuck: Detachable full metal drill chuck with high clamping forces for classic drilling applications. Clamping range Ø 1.5 - 13 mm, max. torque 120 Nm.

QuickIN depth stop with screw-in sleeve:

  • Precise countersinking of every screw to the same depth.
  • Maximum adjustment range: 12 mm, fine adjustment in 0.25 mm increments for perfect adjustment.
  • Recommended for screws with sealing washers and self-tapping screws for optimum sealing.


AMPShare - One rechargeable battery for many devices

The CLIPFIX 3in1 utilises the innovative AMPShare battery technology, which offers cross-brand compatibility with numerous professional tools.

  • Compatible with Bosch Professional 18V batteries since 2008 - one battery for many machines.
  • COOLPACK technology - for longer battery life thanks to better heat dissipation.
  • 87 % more power - than conventional batteries thanks to the latest cell technology and intelligent battery management.
  • Electronic Cell Protection (ECP) - protects the battery against overload, overheating and deep discharge.
  • Fast charging times - 80 % in just 35 minutes for uninterrupted work (5 AH battery).


AMPShare - A battery community for professionals!

With over 80 million batteries sold and a constantly growing community of partners, AMPShare is THE 18V battery system for tradesmen.

To AMPShare

Why CLIPFIX 3in1 for your RHEINZINK standing seam roof?

  • Work faster & more efficiently - reduced installation times thanks to magazine operation.
  • Versatile - screwing, drilling and magazine operation in one device.
  • Perfectly matched to RHEINZINK-fixing clips - for secure and durable fastening.
  • Cross-brand battery compatibility - with Bosch Professional and many other AMPShare partners.
  • 40-year RHEINZINK guarantee - proven quality for sustainable roof solutions.


Would you like to buy our new CLIPFIX 3in1?

Find your contact person now


You can download the operating instructions for the CLIPFIX 3in1 from the following link:


Operating instructions CLIPFIX 3in1
